BAG-4022DL Large Heavy-Duty Fixed Beam Gantry Machining Center
Large-Travel Heavy-Duty Gantry, One-Stop Platform for Large Workpieces
BAG-4022DL Large Heavy-Duty Fixed Beam Gantry Machining Center
BT50/200 spindle, 6000rpm, 2200mm Y-travel (2700mm auxiliary), 12T load, for large workpiece composite machining
Key Features
Heavy-Duty Integrated Gantry Bed
Integrated cast gantry frame, high rigidity, 12T load, supports heavy cutting, stable precision in long-time machining

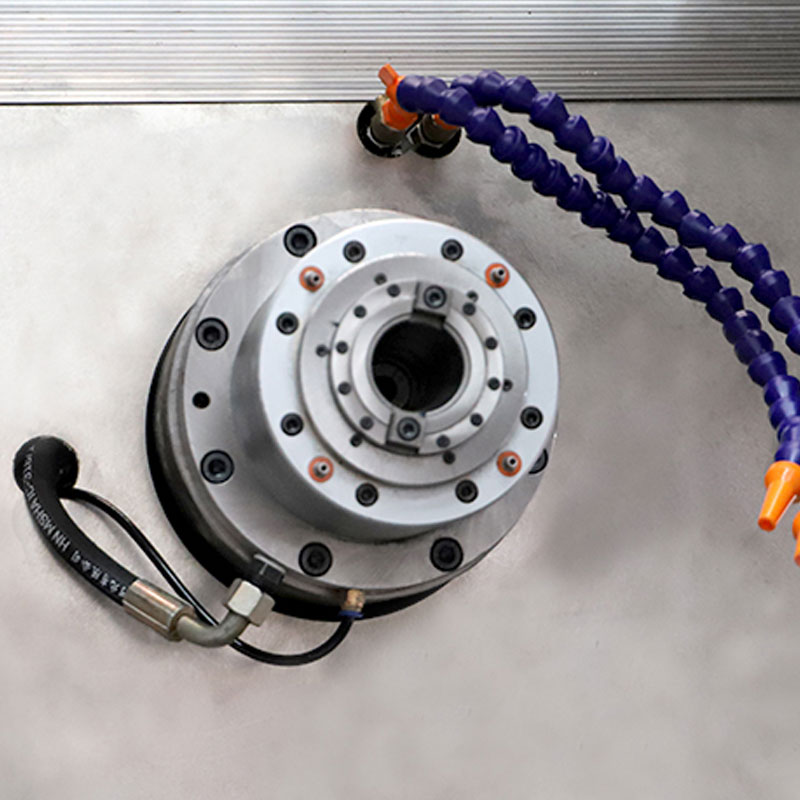

BT50/200 Heavy-Duty Spindle
BT50/200 spindle, 6000rpm, 18.5kW motor, strong cutting capability, worry-free heavy cutting for large workpieces
Composite Machining Platform for Large Workpieces
Large-travel heavy-load table, Arm24 tool magazine, multi-process in one clamping, ideal for flexible production of large workpieces across industries
Technical Specifications
Accessories & Optional Equipments
Standard (Included)
Optional (Extra Cost)
Product Overview
Application Areas
Automotive panel molds
Engine cylinder blocks
Wind turbine gearbox housings
Injection molding machine platens
Mining crusher frames
Packaging & Shipping
Packaging
Export-grade IPPC‑fumigated wooden case packaging with waterproof membrane and shockproof foam. Key components (spindle, control system, guideways) receive additional protective wrapping. Photos of the completed packaging are provided before shipment.
Transportation
We arrange sea, land, or air freight based on equipment size and your delivery timeline. Tracking information is shared as soon as the shipment departs. Please note: actual transit time depends on the shipping route and customs clearance, which are outside our direct control — but we monitor every shipment and keep you updated.
Delivery Time
Production lead time: 20-45 working days for standard configuration machines. Customized equipment lead time is quoted per project. Rush production may be available for urgent orders — please contact us to confirm current factory capacity.
After-sales Service
Installation & Commissioning
We provide detailed installation manuals, step-by-step video guides, and live online support from our engineers to help you install and commission your machine correctly. For complex setups, we can arrange a video call with our technical team to guide your local technicians through the process.
Quality Assurance
12 months warranty for the whole machine, covering manufacturing defects under normal use. Core components (spindle, control system) are covered for 24 months. During the warranty period, we provide replacement parts free of charge; shipping costs and local labor are the customer's responsibility. After the warranty expires, we continue to offer paid spare parts and technical advice.
Technical Training
We provide free operation and maintenance training through detailed video tutorials, user manuals, and live online Q&A sessions with our engineers. If you prefer factory training in China, we can arrange it — travel and accommodation costs are the customer's responsibility.
Technical Support
Our technical team responds within one business day (Monday-Friday, China Standard Time) to emails and messages. For urgent issues, we offer remote video diagnosis and troubleshooting. In critical situations, we can coordinate with the factory engineer to provide specialized support; any on-site service requests will be quoted separately.
