Mold Making Manufacturing

Precision Solutions for Mold Making

Engineer-led metal forming & metalworking solutions tailored for the specific challenges of mold manufacturing — from precision cavities and cores to mold bases.

Explore All Products ...

Core Needs & Pain Points

We focus on the precision machining and metal forming needs unique to automotive manufacturing, addressing key challenges in cost control, market standards, and production flexibility

Core processing requirements

  • High-precision machining of mold cores, cavities, and sliders for dimensional accuracy and superior surface finish
  • Precision turning, milling, and grinding for standard and custom mold bases with long-term structural stability
  • Efficient EDM and WEDM for complex multi-cavity molds and irregular inserts
  • Mirror polishing and wear-resistant coating for extended mold service life and elevated product surface quality
  • Compliance with global mold manufacturing standards (ANSI, ISO) for cross-regional compatibility
  • Support for both mass production of standardized molds and small-batch custom fabrication

Core pain points in the industry

  • Micron-level precision requirements lead to complex workflows, high scrap rates, and elevated production costs
  • Rapid downstream product iteration drives tight delivery deadlines for custom mold orders
  • Poor equipment compatibility across mold types (injection, stamping, die-casting) causes expensive reconfiguration
  • Difficult to balance high surface gloss with wear resistance, shortening mold lifespan
  • Exported molds fail target market standards, causing rework, rejection, and customs delays
  • SMEs lack dedicated engineering support to independently design and optimize complex mold workflows

Targeted Machine Tool Solutions

Combining the processing scenarios of mold making manufacturing, we provide an integrated solution ranging from individual machines to complete production lines

MC

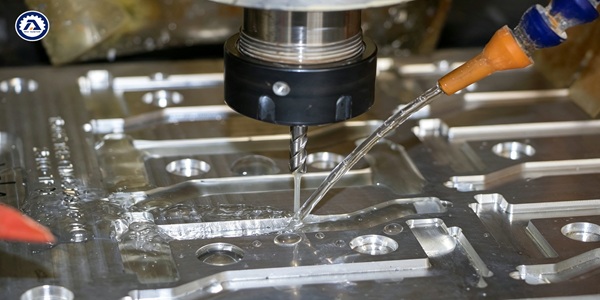

Precision Mold Inserts & Cavities

For injection mold cores, stamping mold cavities, die-casting mold sliders, and precision inserts requiring micron-level accuracy and flawless surface finish

Ultra-Precision Equipment: High-precision CNC vertical machining centers, EDM machines, and WEDM wire cutters configured for consistent dimensional accuracy and superior surface quality
Global Standards Compliance: Processes adapted to meet ANSI and ISO ultra-precision mold standards
Integrated Finishing Package: Custom cutting tools, precision clamping fixtures, and matched surface treatment (mirror polishing, wear-resistant coating) to reduce scrap rates and extend mold service life
MC

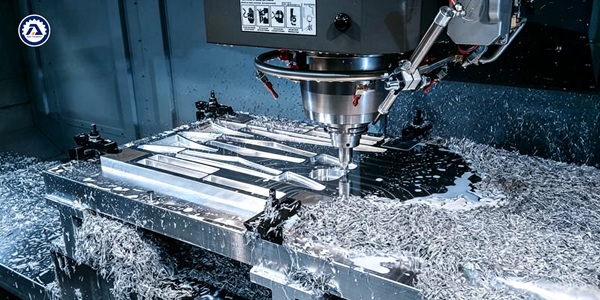

Mold Bases & Structural Plates

For standard and non-standard mold bases, clamping plates, and frame structural components across injection, stamping, and die-cast molds

Efficient Batch Equipment: Precision CNC lathes, vertical milling machines, and surface grinders configured for integrated mold base machining with consistent assembly precision
Universal Configurability: Adjustable to structural design specifications of all mold varieties, customizable per mold base size and load-bearing requirements
Integrated Base Package: From mold base design consultation to matched machine configuration, boosting assembly efficiency and reducing repeated adjustment costs
MC

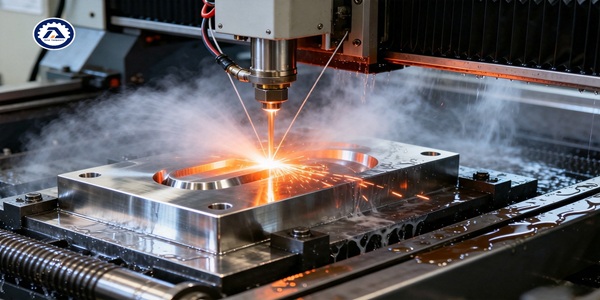

Complex Geometry & EDM Processing

For intricate multi-cavity molds, irregular mold inserts, and complex geometry components requiring specialized EDM and WEDM capabilities

Specialized EDM Equipment: High-precision EDM and WEDM machines configured for complex cavity geometries and hard-to-machine mold materials
Custom Process Design: Our technical team delivers custom process planning, electrode design support, and pre-production sample validation
SME-Focused Flexibility: Integrated EDM processing packages with responsive, direct-access technical support — resolving complex geometry bottlenecks for small and medium mold manufacturers

Recommended Machine Tools for Mold Making

Selected core machine tools adapted to mold making production — balancing precision, efficiency, and cost for diverse global market requirements.

baf‑650v‑gantry‑5‑axis‑simultaneous‑machining‑center PREMIUM BAF-650V

BAF‑650V Gantry‑Type 5‑Axis Simultaneous Machining Center

Gantry‑5‑Axis, Heavy‑Load Table, 5‑Axis Machining For Multi‑industry Complex Parts

Rotary Table Size: Φ650mm
Maximum Load Capacity of table: 800kg
Details ->
baf‑400v‑gantry‑5‑axis‑simultaneous‑machining‑center BAF-400V

BAF‑400V Gantry‑Type 5‑Axis Simultaneous Machining Center

Gantry‑5‑Axis, Direct‑Drive Rocker, Precision Machining For Small‑Medium Complex Parts

Rotary Table Size: Φ400mm
Maximum Load Capacity of table: 200kg
Details ->

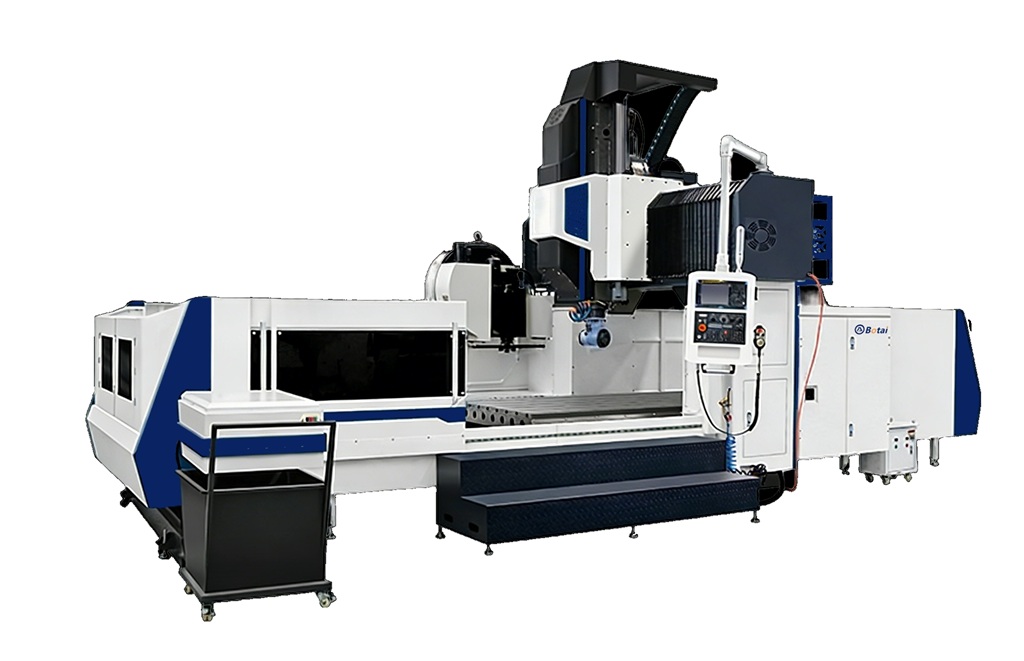

bag-1312dl-small-precision-fixed-beam-gantry-machining-center BAG-1312DL

BAG-1312DL Small Precision Fixed Beam Gantry Machining Center

Compact Precision Gantry, Top Choice for Small Parts Machining

Table size (W*L): 1400*1050mm
X‑axis travel: 1350mm
Details ->

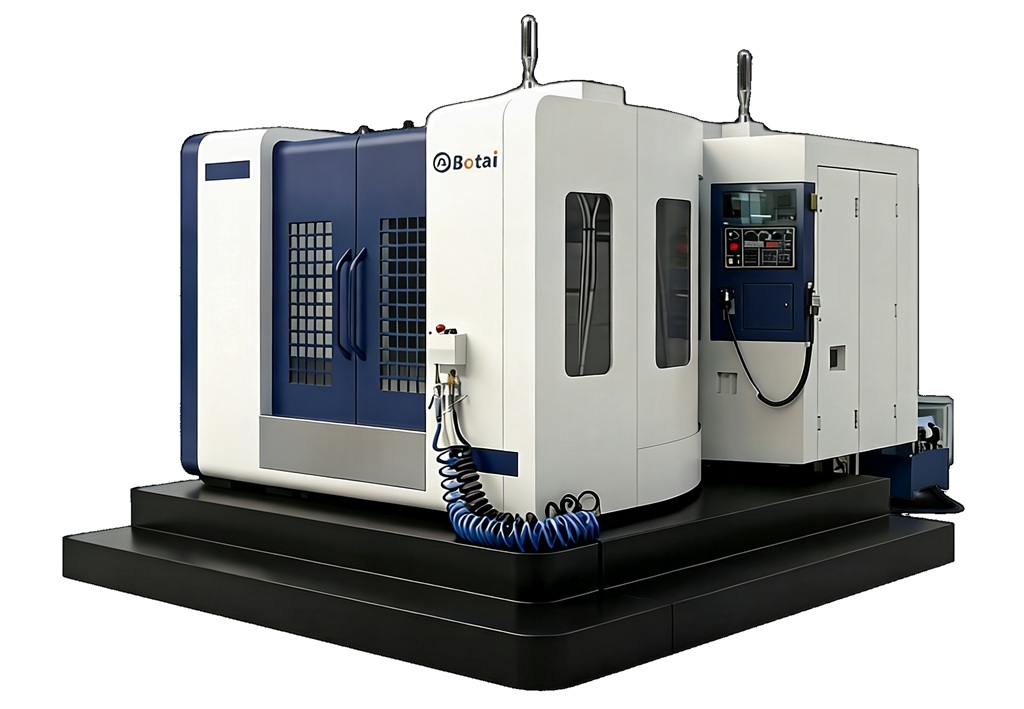

bah-50c-positive-t-type-hmc BAH-50C

BAH-50C Positive T-Type Horizontal Machining Center

Ideal for heavy cutting of general box components

Table size: 500*500mm
X axis: 800mm
Details ->

Our Core Advantages

The integrated manufacturing & trading difference: engineer-led, market-aware, and built on verified quality

Industry Customization

Deeply adapted to auto parts manufacturing. We customize machine parameters, tooling, and fixtures to your specific workpiece drawings

Global Market Adaptation

We prioritize machines that meet key international standards (ANSI, ISO, CE), ensuring compatibility across North America, South & Central America, and Asia

Quality Assurance

Strict, engineer-led quality control. From incoming material checks to final run-off testing, we verify quality before shipment and provide transparent proof

Professional Expertise

Specialized know-how in metal forming & metalworking machine tools, backed by a technical support team you can talk to directly
